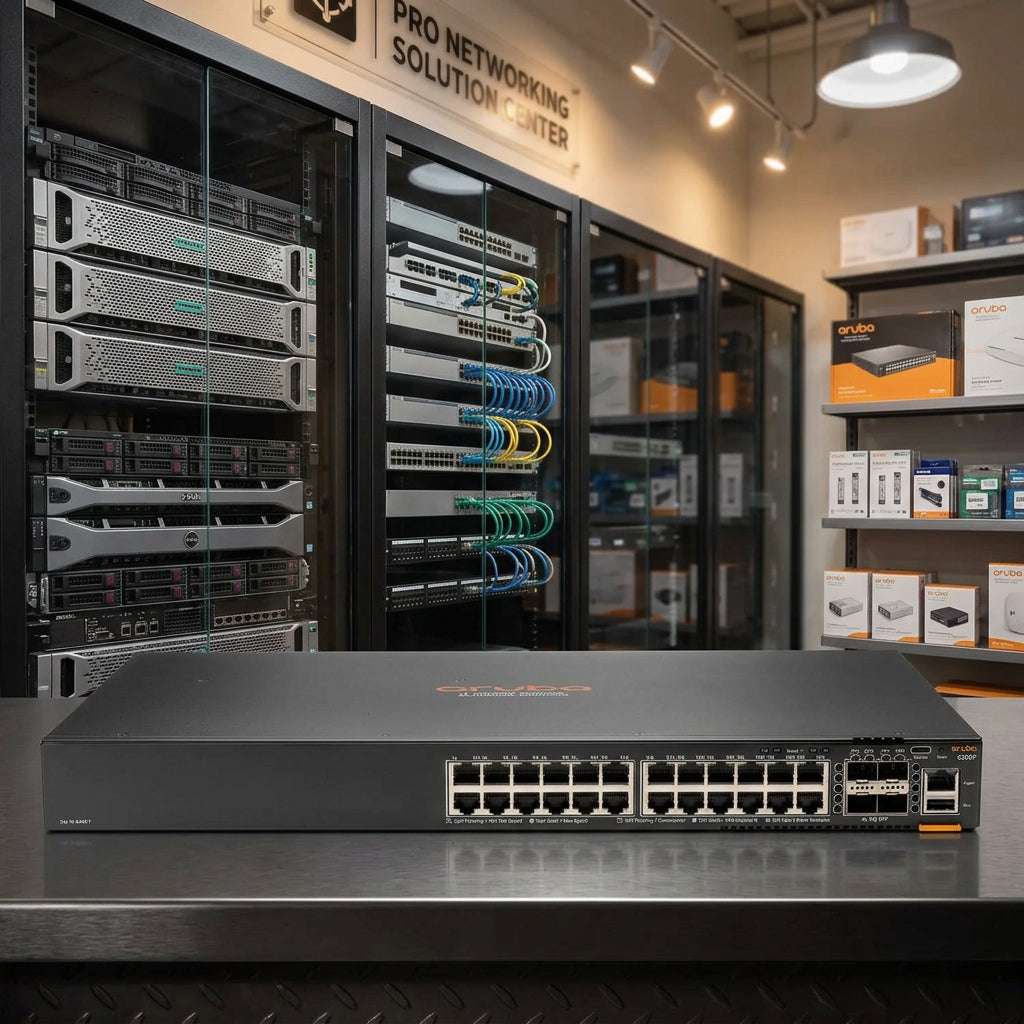

um dispositivo eletrônico preto com uma fileira de portas na frente, provavelmente um dispositivo de rede ou um computador.
um dispositivo eletrônico preto com uma fileira de portas na frente, provavelmente um dispositivo de rede ou um computador.
Aruba

HPE Aruba 2930F 24G 4SFP+ Layer 3 Switch JL253A

SKU: JL253A
(0)
Escreva uma Avaliação
In stock
Order
R$ 11.469,35 ICMS
-25% R$ 15.260,84 R$ 11.469,35 ICMS
Solutions for Businesses

CORPORATE PURCHASE

Need multiple units or a custom configuration?

Contact us for:
• Volume-discounted quotes
• Sizing consultation
• Installation scheduling

📧 cotacoes@itcomputers.com.br
📞 0800 590 0343

Share Specifications

Send the technical specifications to your team.

Need Help or a Custom Quote?

Chat Email 0800 590 0343

HPE Aruba 2930F 24G 4SFP+ Switch – JL253A

Part Number: JL253A | Ports: 24x 1G RJ-45 | Uplinks: 4x SFP+ 1/10GbE | Layer: Layer 3 | Operating System: ArubaOS-Switch | Condition: New

Specification Detail
Manufacturer Aruba (HPE)
Part Number / MPN JL253A
GTIN 0190017219981
Family Aruba 2930F
Access Ports 24x 1G RJ-45
Uplinks 4x SFP+ 1/10GbE
Layer Layer 3
Operating System ArubaOS-Switch
Management Aruba Central (cloud), CLI, SNMP
Switching Capacity 128 Gbps
Throughput 95.2 Mpps
Routing OSPF, RIPv2, Static
VLANs Supports 4094 VLANs
QoS 8 queues per port, DSCP, 802.1p
Security 802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection
Stacking Up to 10 units via VSF cable
Dimensions 1U Rack
Condition New
Warranty Per HPE manufacturer

Enterprise Features

  • 4 10GbE SFP+ uplinks for high-speed interconnection with the network core
  • Layer 3 routing with OSPF, RIPv2, and static routes
  • Physical stacking of up to 10 units for unified management
  • Centralized management via Aruba Central with cloud visibility
  • Advanced security: 802.1X, per-port ACLs, DHCP Snooping
  • QoS with 8 queues per port for prioritizing VoIP and video traffic

Recommended Applications

  • Access distribution in medium and large enterprise networks
  • Interconnection of access layers to the core via 10GbE uplinks
  • Environments with Layer 3 routing requirements at the edge
  • Campus network infrastructure modernization projects

Expansion and Connectivity

  • 4 SFP+ uplinks compatible with 1G and 10G modules (copper and fiber)
  • Physical stacking of up to 10 switches for horizontal scaling
  • LACP support for link aggregation and redundancy

Complete I.T. Computers Solutions – Enterprise Networks

  • Consulting and Sizing: Topology analysis and definition of the ideal network architecture
  • Bulk Supply: Centralized acquisition with special conditions
  • Installation and Configuration: Complete deployment with VLANs, routing, QoS, and stacking
  • Continuous Technical Support: Monitoring, firmware, and post-deployment support
  • Related Projects: Enterprise Networks and Wi-Fi | Data Center Modernization

Contact: cotacoes@itcomputers.com.br | 0800 590 0343

Order Information

  • SKU / Part Number: JL253A
  • GTIN: 0190017219981
  • Family: HPE Aruba 2930F
  • Type: Layer 3 Managed Switch
  • Condition: New (sealed)
  • Origin: Imported
  • Warranty: Per HPE manufacturer

Installment Plan

In up to 10 installments of R$ 1,293.45 interest-free on credit card.
or R$ 12,934.46 in a single payment.
