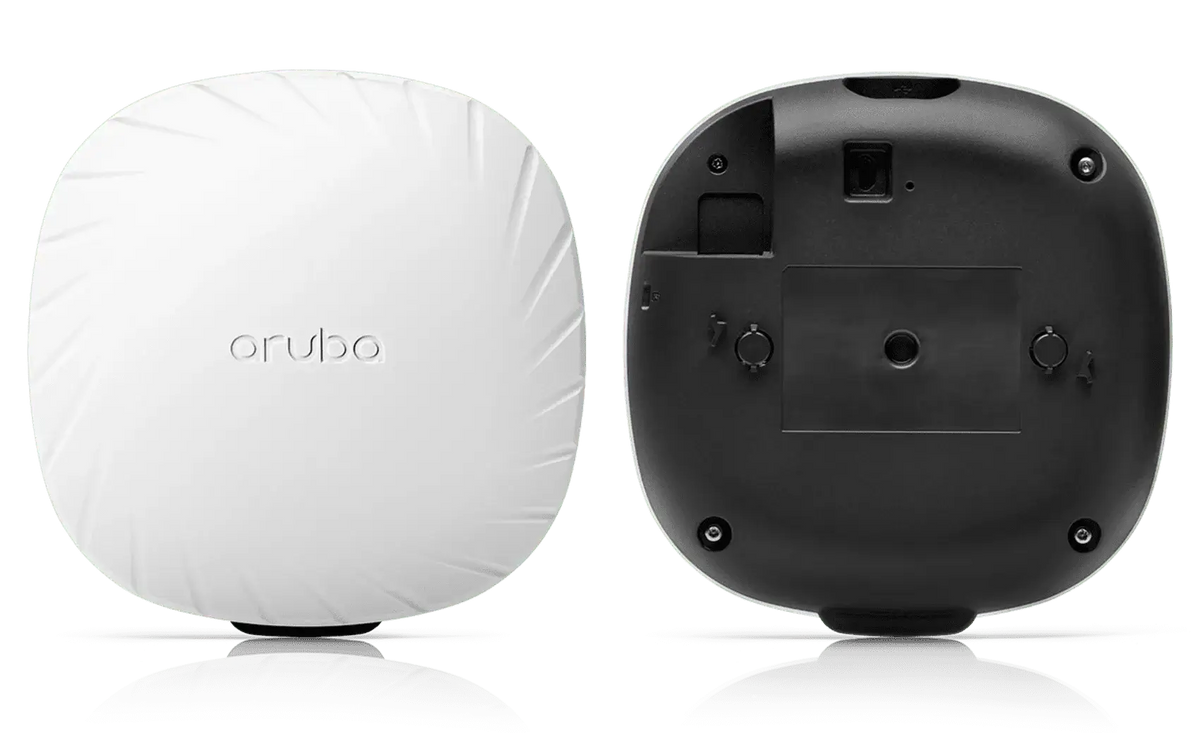

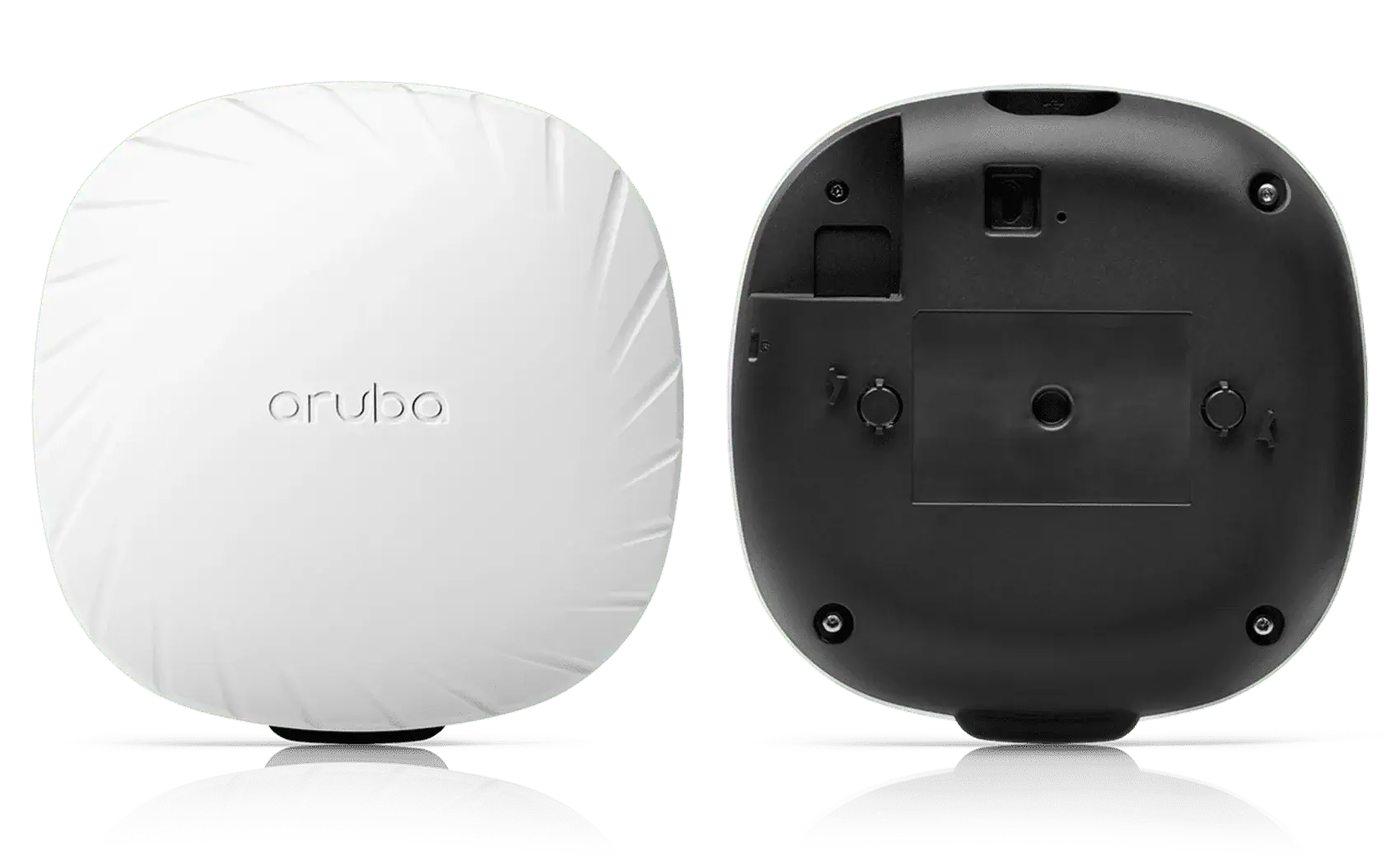

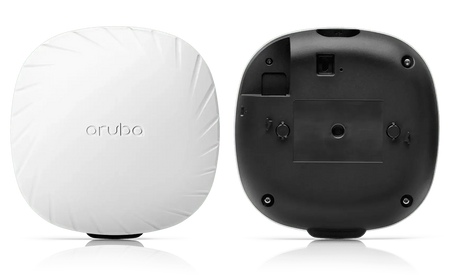

Access Point HPE Aruba AP-535 (RW) Unified AP JZ336A

Model

JZ336A

Series

Aruba AP-535

AP type

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax

4x4 MIMO

5GHz radio

Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS

HE80 (or 2SS HE160) 802.11ax client devices, or with four

1SS or two 2SS HE80 802.11ax MU-MIMO capable client

devices simultaneously

2.4GHz radio

Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with

individual 4SS HE40 (HE20) 802.11ax client devices or with

two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client

devices simultaneously

Antenna

4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna

gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported data rates (Mbps)

- 802.11b: 1, 2, 5.5, 11

- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

- 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM

- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM

- 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)

- 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
